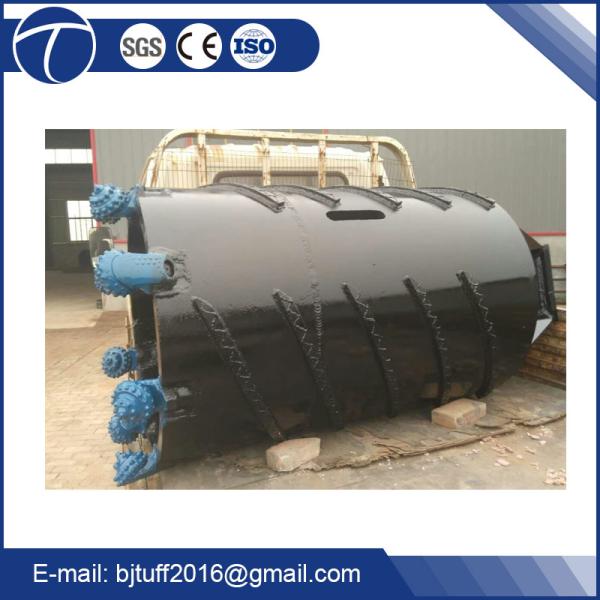

Roller Bit Core Barrel For Rotary Drilling Rig And Suitable For
Bauer
Feature
1. Cutting ring with roller bits and releases the internal stress
of rock；
2. Drilling with the method of rolling and squeezing can increases
the anti-wear ability of the barrel;
3. Small barrel facilitates the coring operation; large barrel
performs stage breaking;
4. Applicable layers: medium or slightly weathered rock, hard or
super-hard bedrock；
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on
demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten,
increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to
extend life cycle;
4. Roller Bits Custom: new roller bits, used roller bits and
detachable roller bit design as demand;
5. Kelly Box Custom : custom Kelly box size based on the Kelly bar,
like 130*130, 150*150,200*200 etc;
6. Teeth No. Custom : encrypt the drilling teeth based on demand
etc;
Application
Applicable for very strong rock formations with compressive
strength greater than 100MPa. Can be matched with all type of
rotary drill rig. Like Bauer, Soilmec, Mait,Liebherr, casagrande,
IMT, Sany, XCMG, Zoomlion, Sunward etc.
Core barrels are used to cut an annular ring in rock or concrete or
reinforced concrete. The centre core of the rock or concrete is
usually crushed with rock auger. The most important advantage of a
core barrel is that it assists to concentrate the torque and crowd
force on a small ring of cutting teeth.
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Stiffening Ring HIT. | Teeth No. | Weight |
φ600 | 1200 | 20 | 20 | 250 | 4 | 600 |
| φ800 | 1200 | 20 | 20 | 250 | 6 | 750 |
| φ900 | 1200 | 20 | 20 | 250 | 8 | 850 |
| φ1000 | 1200 | 20 | 20 | 250 | 8 | 980 |
| φ1200 | 1200 | 20 | 20 | 250 | 10 | 1200 |
| φ1500 | 1200 | 20 | 20 | 250 | 12 | 1600 |
| φ1600 | 1200 | 20 | 20 | 250 | 14 | 1750 |
| φ1800 | 1000 | 20 | 20 | 250 | 16 | 1910 |
| φ2000 | 800 | 20 | 20 | 250 | 18 | 1950 |
| φ2200 | 800 | 20 | 20 | 250 | 18 | 2200 |
| φ2500 | 800 | 25 | 20 | 250 | 20 | 2800 |
| φ2800 | 800 | 25 | 20 | 250 | 24 | 3650 |
| φ3000 | 800 | 30 | 20 | 250 | 26 | 4200 |
| Remark : All measurements are in millimeters, weight in kilograms. |
